ECOPOWER ENGINE WASHING BENEFITS:

  • Extends engine time-on-wing up to 10%
  • Removes salts and other contaminants
  • Reduces maintenance cost up to 15%
  • Improves engine torque up to 5%
  • Reduces engine temperature up to 30C
  • Saves fuel up to 1.8%
  • Reduces wash times (~30 min/engine)
  • Wash anywhere with effluent collector
  • Environmentally friendly & compliant
  • Eliminates detergent purchase & disposal

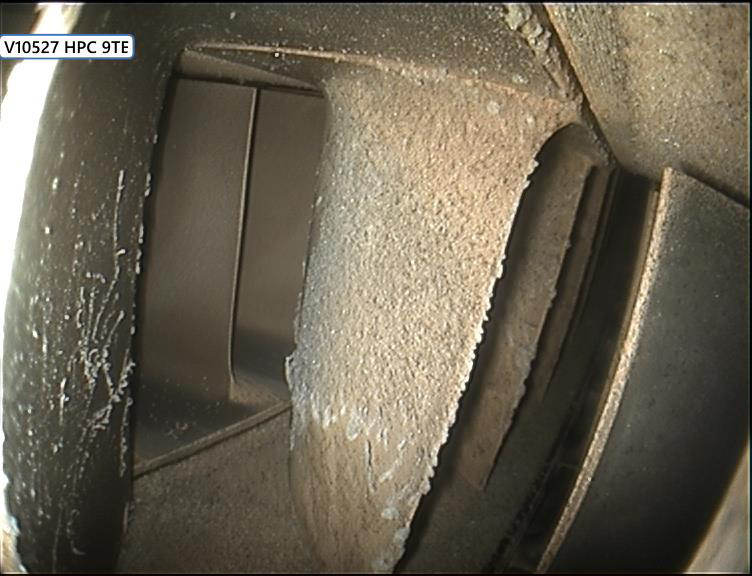

Before

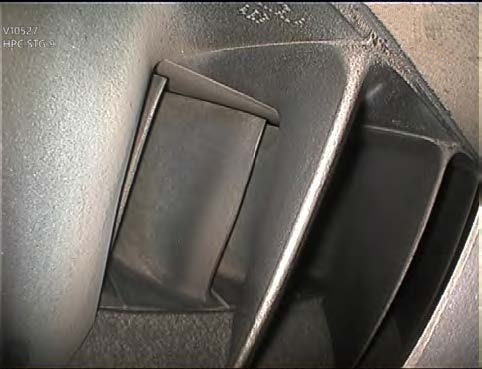

After

A SUPERIOR CLEAN FOR YOUR AIRCRAFT ENGINE.

With engines ingesting contaminants throughout the entire flight process, they must be washed regularly to maintain efficiency and integrity. To keep your aircraft’s engine running in prime condition, we provide EcoPower technology, the highest quality wash available. The patented water-only engine wash process delivers exceptional and effective results every single time.

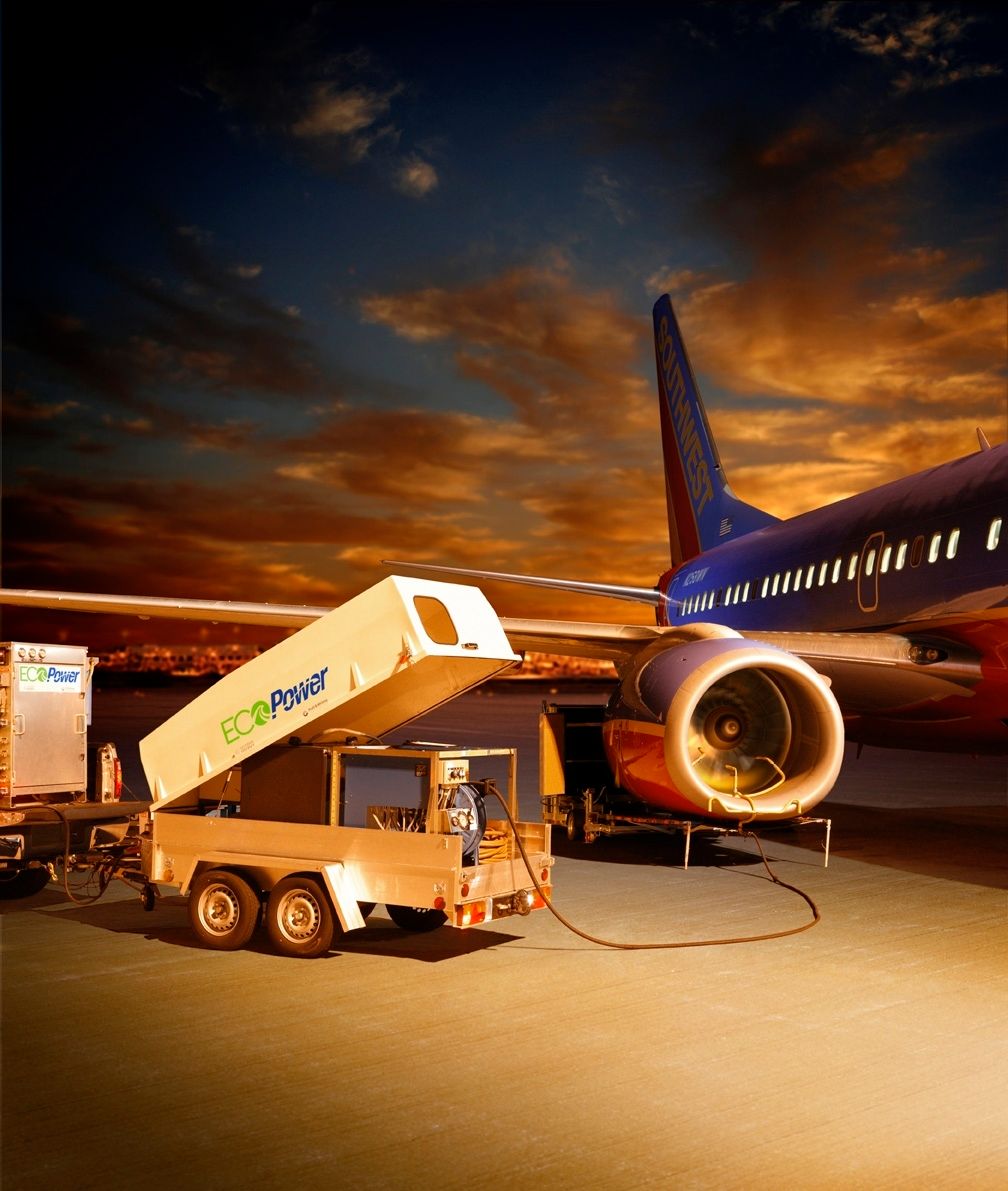

Closed Loop engine wash system

OUR SYSTEM WORKS FOR ALL AIRCRAFT ENGINES.

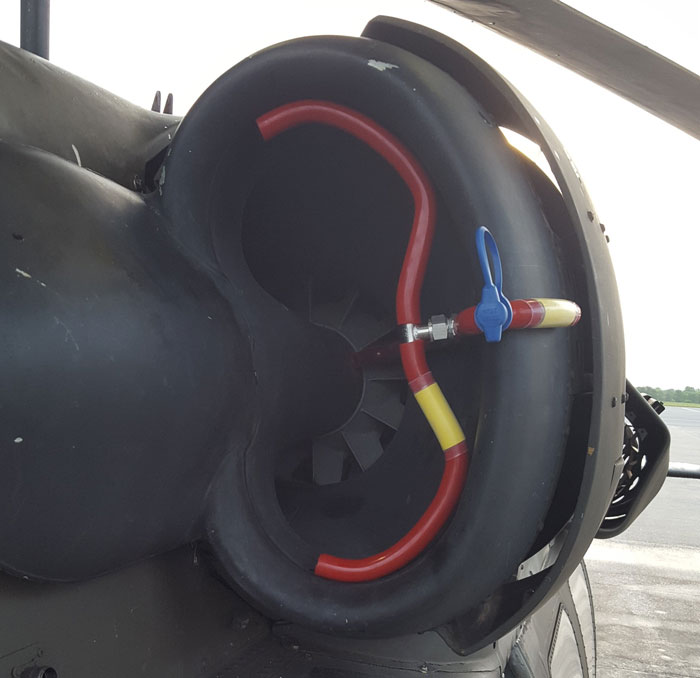

The patented EcoPower® Process and Equipment can wash any aircraft and engine from the largest to the smallest gas turbine and APU.

WE’VE ENGINEERED A BETTER ENGINE WASH.

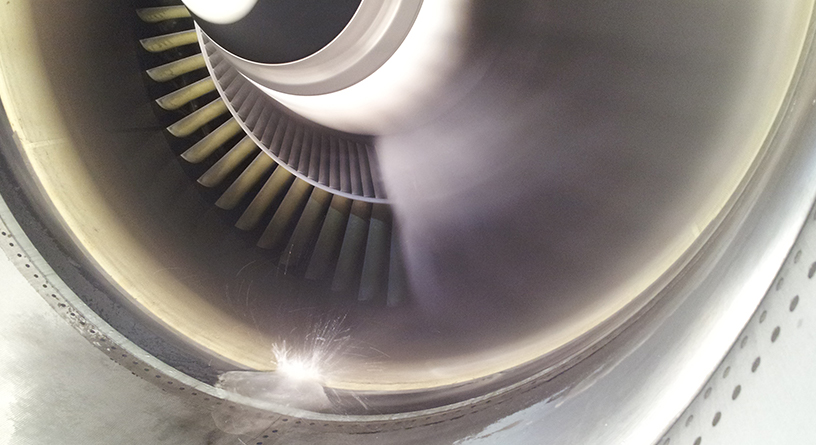

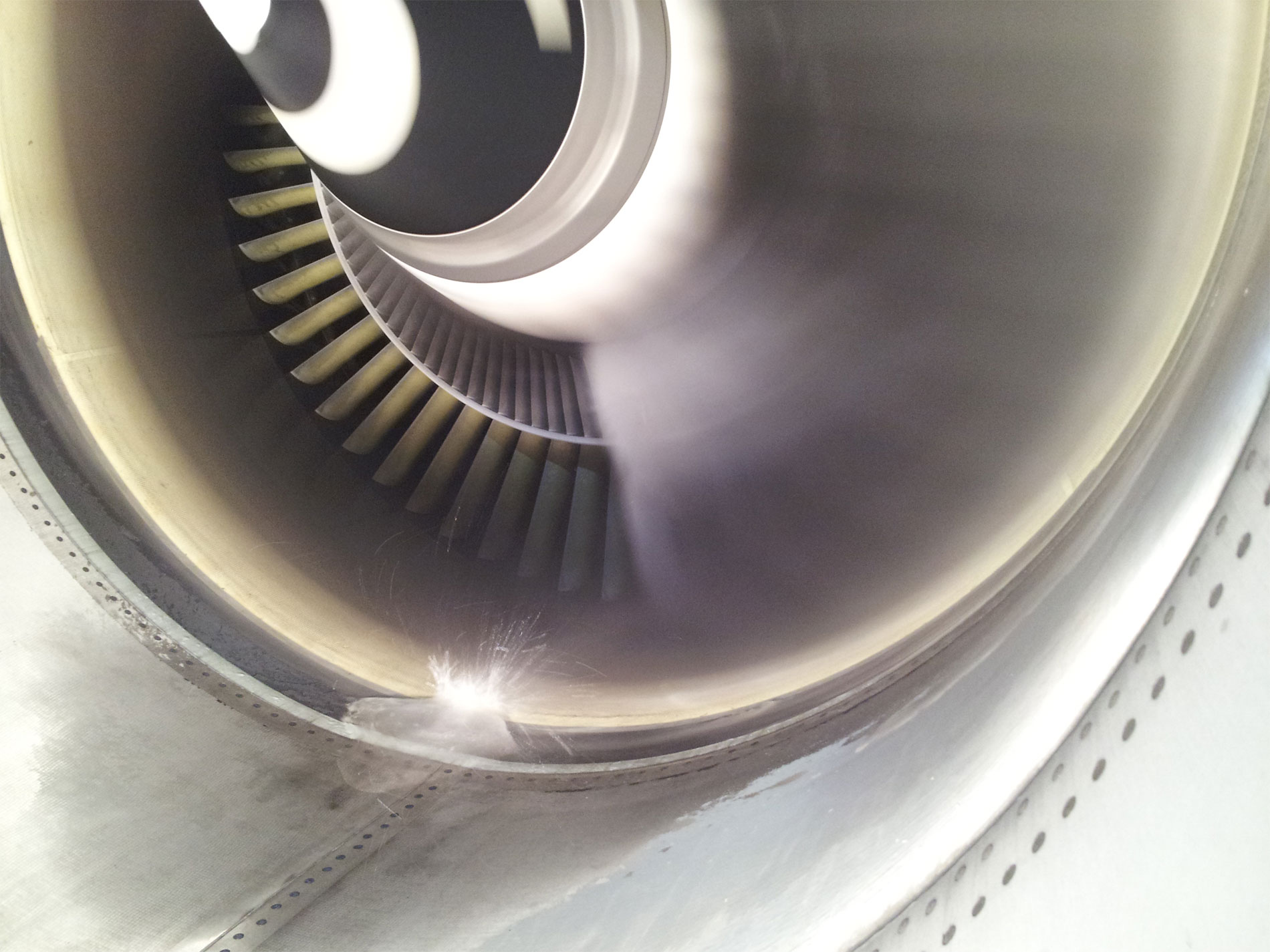

A conventional wash stream doesn’t penetrate the core. Our system uses deionized, atomized water that follows the air path through the engine for maximum penetration and cleaning. This technology enables water to pass through the turbine and exit the exhaust, thus removing the contaminants from the engine rather than redepositing them within the engine.

What makes deionized water so special?

The water is extremely pure and contains no minerals, particulates, or ions, making it a highly effective cleaning agent. This eliminates both the need for detergent and the risk of engine contamination.

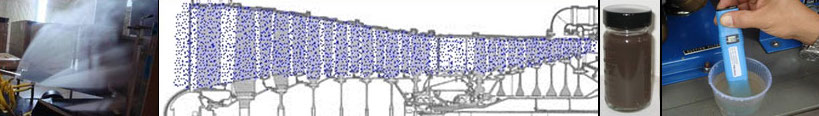

– Manifold injects heated, atomized, deionized droplets for complete engine core wetting
– DI water (0 ppm TDS) attracts, removes contaminants and carries them out of engine
– Effluent is collected, treated, the water is reused and contaminants are safely disposed

ECOPOWER PATENTED WATER ONLY ENGINE WASH PROCESS:

Filter: to remove impurities from tap water
Deionize: to attract and dissolve contaminates
Heat: to improve solubility of contaminates
Pressurize: to create high velocity droplets for wash
Atomize: to optimize droplet size for penetration
Collect: to prevent environmental contamination
Treat: to remove contaminates from effluent
Recycle: to conserve water and reduce waste

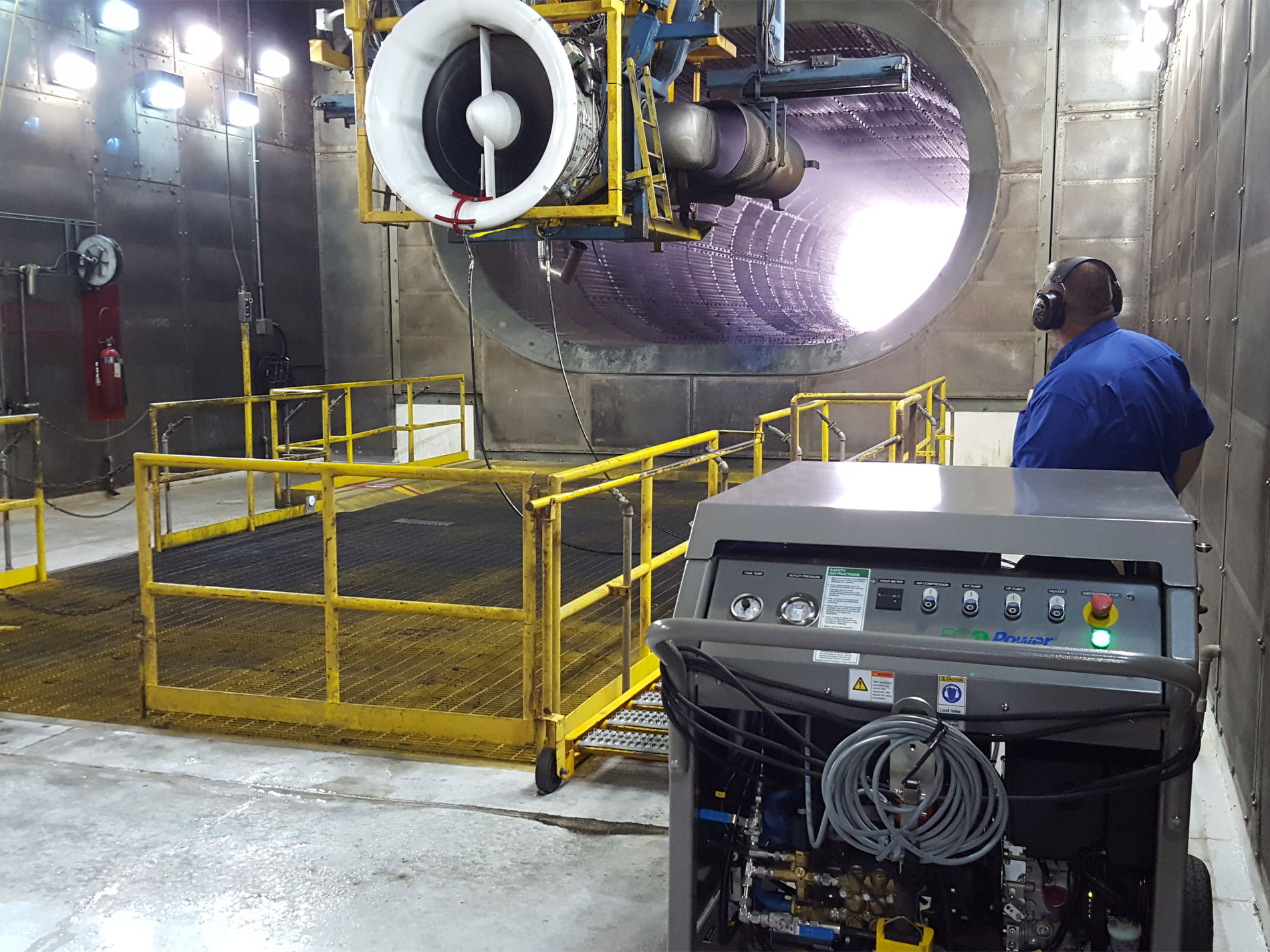

HIGHLY ADVANCED EQUIPMENT POWERS OUR PROCESS.

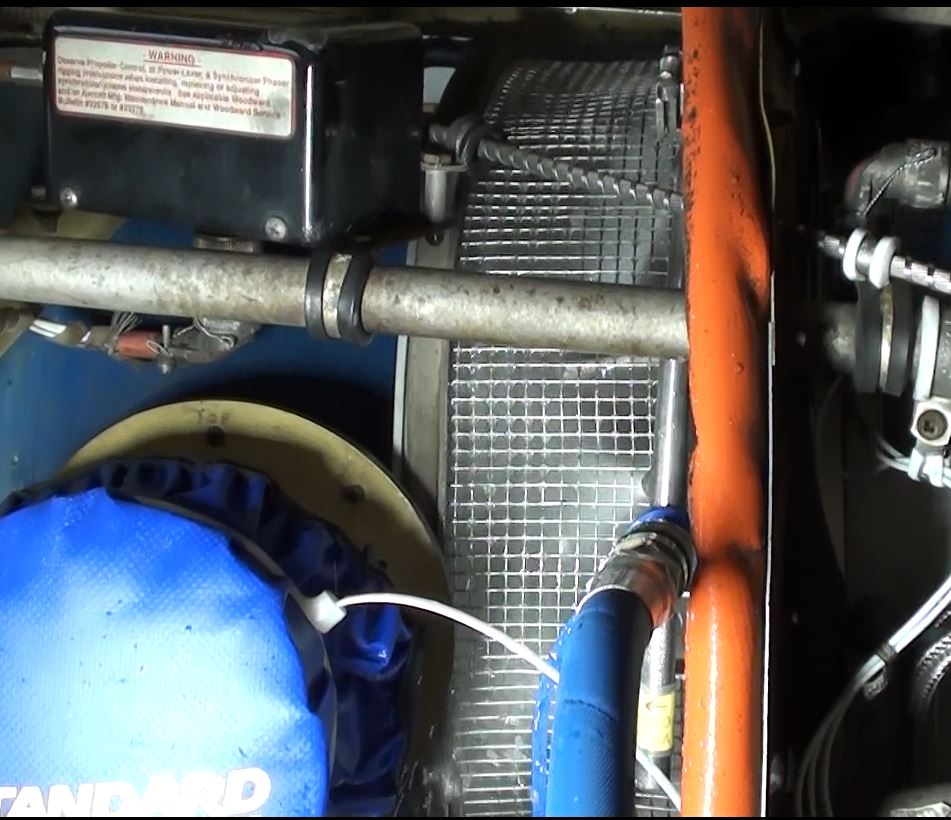

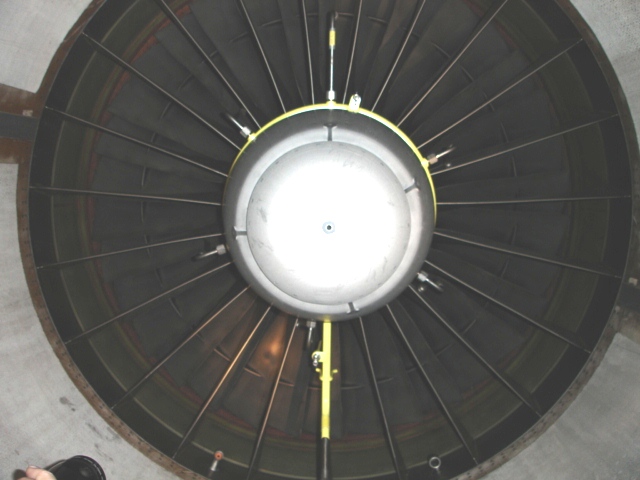

The EcoPower® wash system is effective because of the state-of-the-art equipment we use. EcoPower wash units, manifolds and collectors, provide a closed-loop, environmentally friendly engine wash process. EcoServices can design and build a manifold for any turbine engine type. The variety of manifold designs includes inlet mounted, RMJF, ring type, helicopters, APUs, radial inlets, probes, virtually any manifold for any engine type on any aircraft.

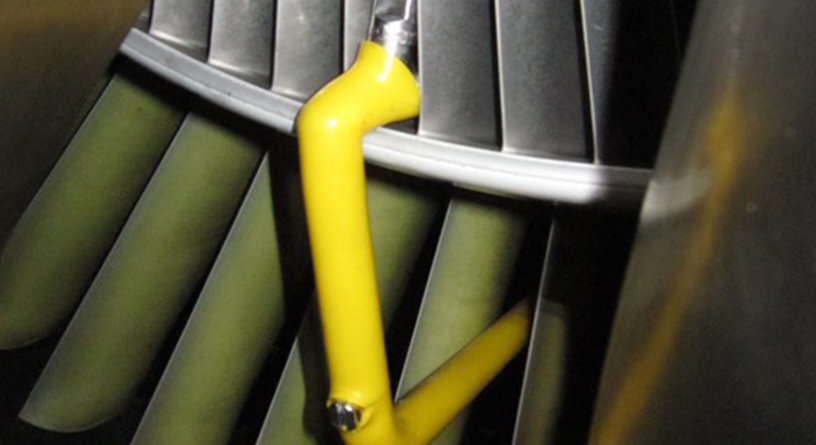

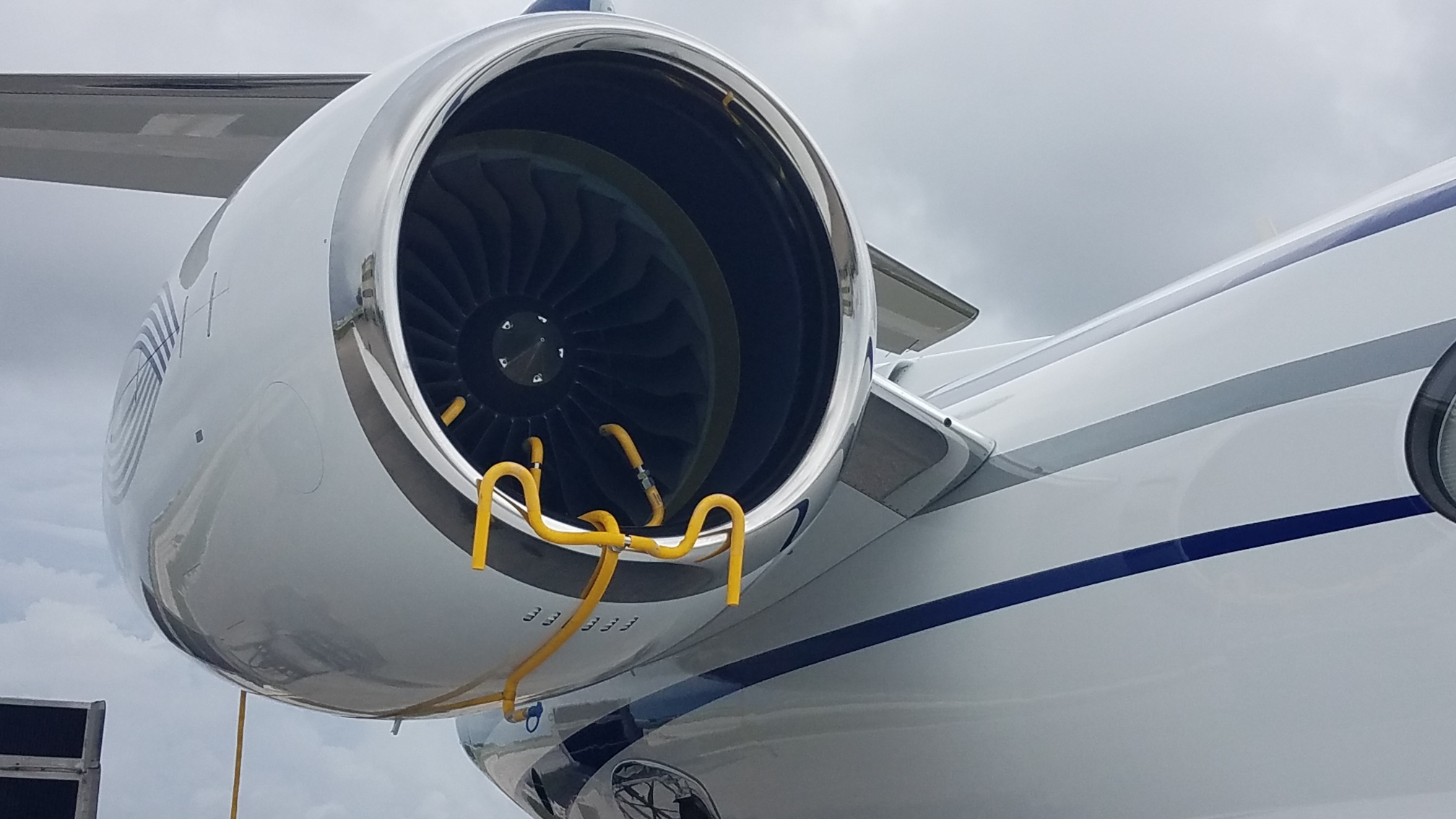

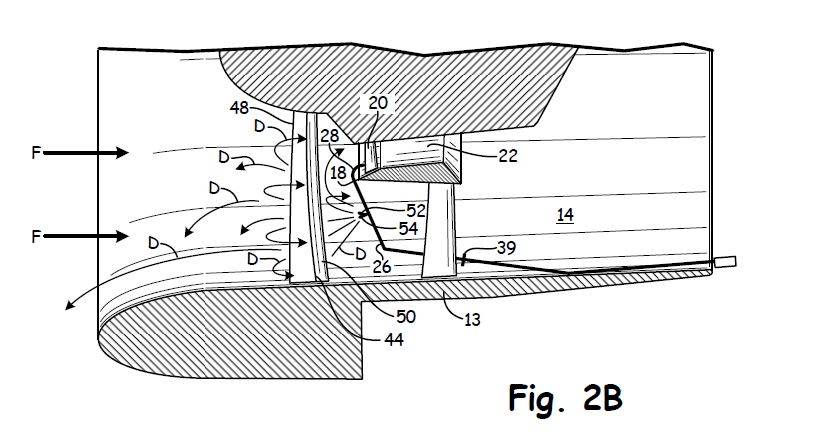

Patented Rear Mounted
J-hook / Fan (RMJF) Manifold

The revolutionary, patented RMJF manifold not only optimizes engine core cleaning but also cleans the engine fan. Atomized droplets are injected directly into the core and sprayed from behind the fan to wet both the forward and aft fan blade surfaces. The RMJF process has demonstrated maximum engine performance gains for most engine types.

Contact EcoServices for the latest state-of-the art equipment to best suit your applications. Wash manifolds and equipment are tailored for each customer’s specific needs in order to optimize wash benefits and to provide the most efficient solution.
